System Designs

The following diagrams illustrate the architecture, data flow, and AWS services used in the applications developed throughout my software engineering career.

AWS Polly Voice Generator

Serverless text-to-speech platform leveraging AWS Lambda, SNS, DynamoDB, S3, and Amazon Polly.

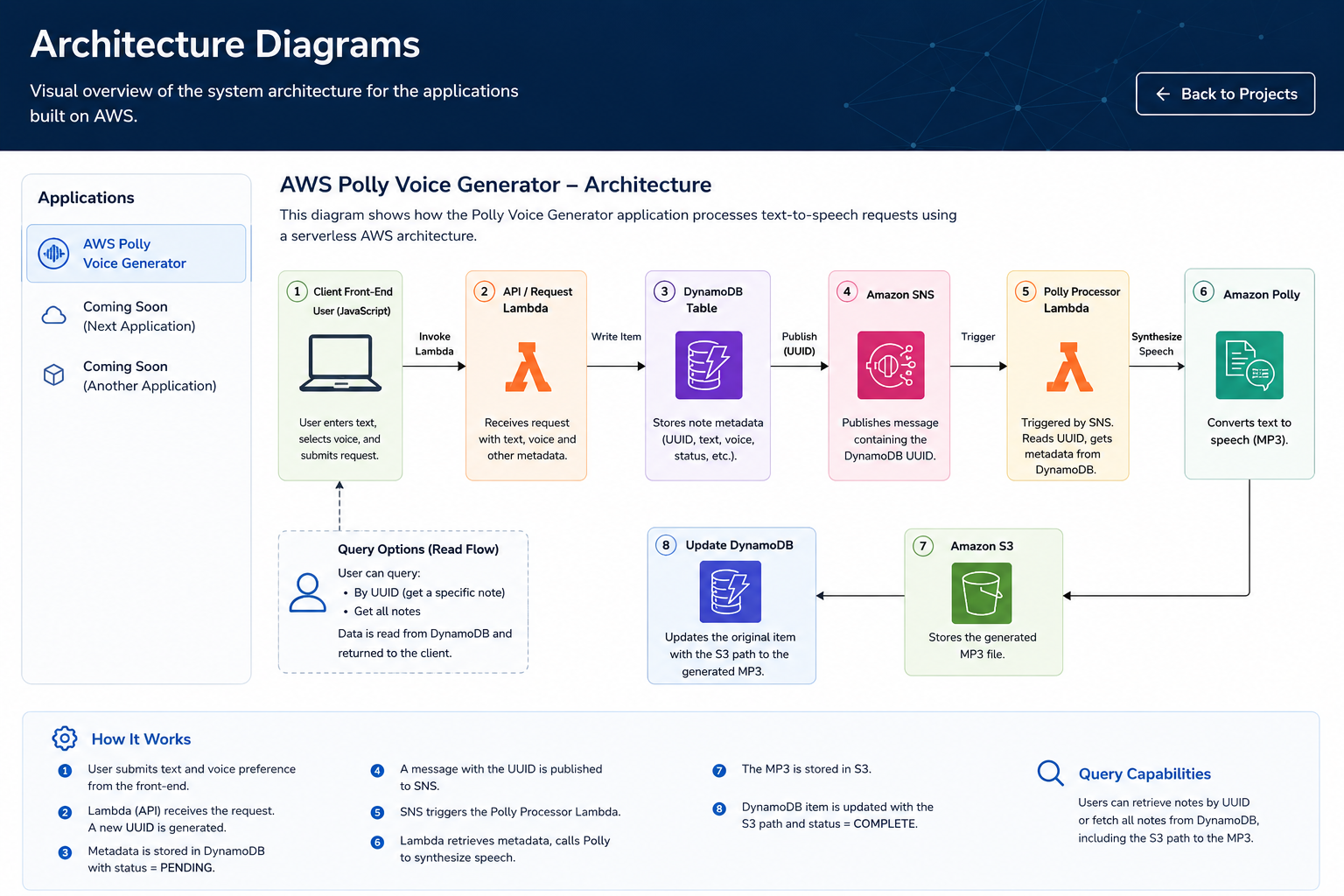

AWS Polly Architecture Diagram
Architecture Summary
  • Client-side JavaScript invokes AWS Lambda directly.
  • Lambda generates a UUID and stores request metadata in DynamoDB.
  • Lambda publishes the UUID to Amazon SNS.
  • SNS triggers a processing Lambda.
  • Processing Lambda retrieves metadata and invokes Amazon Polly.
  • Generated MP3 audio is stored in Amazon S3.
  • DynamoDB is updated with the S3 object path.
  • Users can query a specific UUID or retrieve all generated notes.
